HT-106/H116 series 9” Classical Hex Coax Rugged, Longevity

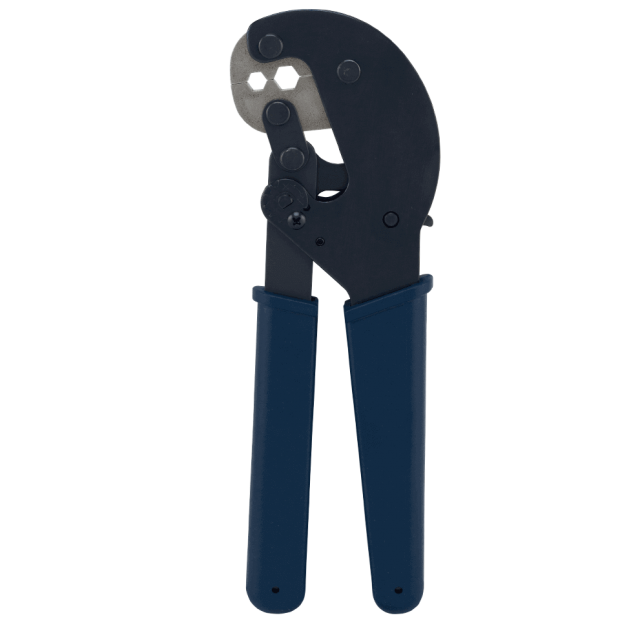

9” Non-Interchangeable Hex Coax Crimper

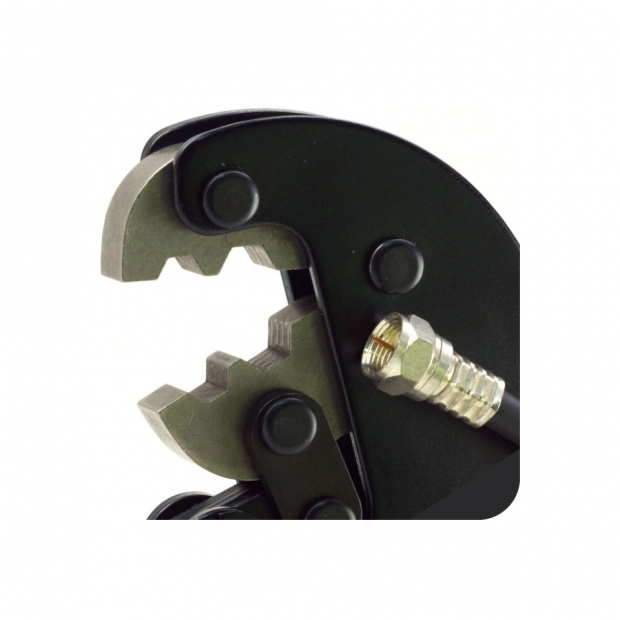

- Hex crimp with fixed die-set works on various coax connectors.
- Full-cycle ratchet ensures consistent and reliable termination.
- Built-in a safety release to quick unlock and eliminate mis-crimp or obstruction.
- Non-slip grips feature a comfort and reduce user fatigue.
- Crimp force is pre-set at the factory for optimal operation result.
- HT-H116 series is designed with ratchet mechanism; HT-106 series without.
Application
| Item no | Dimension | Ratchet | |
| HT-106C |  |
.255”/ .322” 6.48/8.20mm RG 59,62,6 |
No |
| HT-H116C | Yes | ||
| HT-106D |  |
.255”/.213”/.068” 6.48/5.40/1.72mm RG 58,59,62 |
No |
| HT-H116D | Yes | ||
| HT-106E |  |
.213”/.322”/.488” 5.40/8.20/11.40mm RG 58,6,11,213 |
No |
| HT-H116E | Yes | ||
| HT-106F |  |
.100"/.322"/.476" 2.54/8.20/12.10mm RG 6,11,213 |
No |
| HT-H116F | Yes | ||
| HT-106G |  |
.100"/.322"/.448" 2.54/8.20/11.40mm RG 6,11,213,Belden 8281 |
No |
| HT-H116G | Yes | ||
| HT-106H |  |
.322"/.359" 8.20/9.12mm RG 59,62,6 |
No |
| HT-H116H | Yes | ||
| HT-106L |  |
.100"/.359"/.406" 2.54/9.12/10.30mm F-59,RG 6,11,UHF-58,8 |
No |
| HT-H116L | Yes | ||
| HT-106M |  |
.100"/.359"/.475" 2.54/9.12/12.08mm F-59,RG 6,11 |
No |
| HT-H116M | Yes | ||
| HT-106P |  |
.095"/.386"/.453" 2.41/9.80/11.50mm F-59,RG 6,11,UHF-58,8 |
No |
| HT-H116P | Yes | ||
| HT-106Q |  |
.324"/.470" 8.23/11.94mm F-59,RG 6,11,213 |
No |
| HT-H116Q | Yes | ||
| HT-106R |  |
.480"/.362" 12.19/9.19mm F-59,RG 6,11 |
No |
| HT-H116R | Yes | ||
